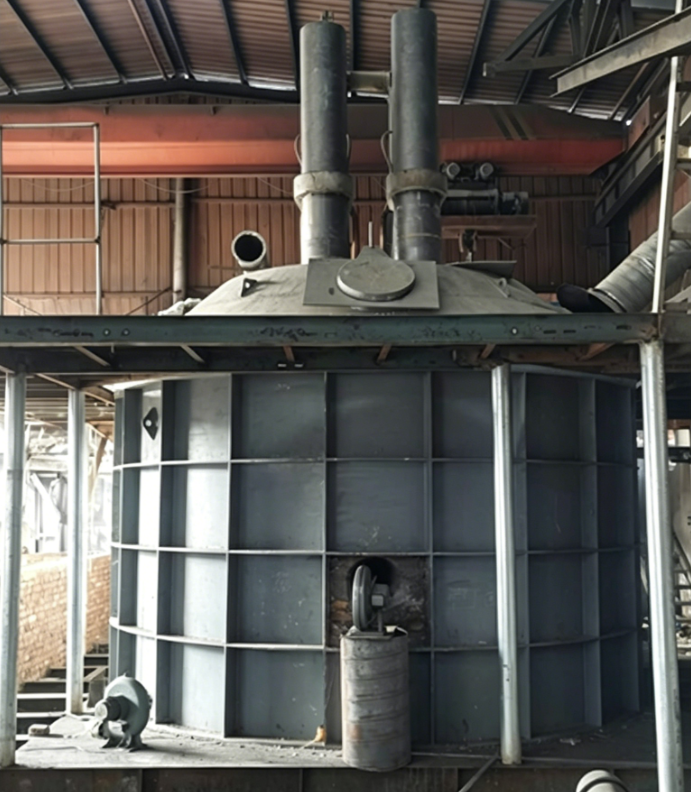

DC Submerged Arc Furnace Equipment
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | Shaanxi Chengda |
| 証明 | ISO 9001 |
| モデル番号 | 設備の処理能力に応じてご相談させていただきます |
| 最小注文数量 | 1台 |
| 価格 | The price will be negotiated based on the technical requirements and supply scope of Party A |
| パッケージの詳細 | 当事者Aの具体的な要件に従って協議する |
| 受渡し時間 | 2ヶ月 |
| 支払条件 | L/C、T/T、ウェスタンユニオン |
| 供給の能力 | 生産サプライチェーンを完成させ、予定通りに供給し、品質基準を満たします |
商品の詳細
| 特徴 | 省エネ | 製品クラス | DCSシステム |
|---|---|---|---|
| マーケティングタイプ | 通常品 | 寸法 | モデルに基づいてカスタマイズ可能 |
| エネルギー効率 | エネルギー回収オプションによる高効率 | デバイスの種類 | 直流電弧炉 |
| 品質認証 | ISO9001 | 電極リフトタイプ | PLC周波数変換制御 |
| 応用 | 鉄鋼製造、合金製造、金属リサイクル | 電極タイプ | 炭素/グラフィット |
| 保証 | 1年 | ||
| ハイライト | DC submerged arc furnace steelmaking equipment,submerged arc furnace for steel production,steelmaking DC arc furnace equipment |
||
製品の説明
DC Submerged Arc Furnace Equipment Introduction
The DC submerged arc furnace is an efficient and energy-saving industrial smelting equipment. It replaces traditional three-phase AC submerged arc furnaces by converting alternating current into direct current for power supply, and is widely used in the production of ferroalloys (ferrosilicon, silicomanganese), industrial silicon, calcium carbide, and other products.
1. Core Working Principle
The core of the DC submerged arc furnace is to realize smelting using DC arc heat + resistance heat:
- External alternating current is converted into stable direct current through the rectification system. The current passes through the cathode electrode at the top of the furnace, forming an arc between the cathode and the anode at the bottom (or wall) of the furnace.
- The high temperature generated by the arc (up to 1600-2000℃), together with the resistance heat of the furnace charge itself, heats the charge to melt it and trigger reduction reactions, producing the required alloy products.
- Compared with alternating current, direct current has no current zero-crossing phenomenon, so the arc is more stable, the heat is concentrated without skin effect, and the energy utilization rate is significantly improved.
2. Core Components of the Equipment
| Module | Key Components | Functional Description |
|---|---|---|
| Furnace Body System | Furnace shell, furnace lining, furnace cover | The furnace shell provides structural support; the furnace lining is made of carbonaceous/refractory materials to withstand high temperature and corrosion; the furnace cover can be designed as a closed type to facilitate flue gas collection and treatment |
| Electrode System | Cathode electrode (graphite/self-baking electrode), furnace bottom anode | The cathode is responsible for inputting the negative direct current, and the furnace bottom anode (conductive refractory material) forms the positive loop; the electrode can realize automatic lifting adjustment |
| Power Supply System | Rectifier transformer, rectifier cabinet, short net | Steps down high-voltage alternating current and rectifies it into stable direct current; the short net adopts a low-impedance design to reduce power loss |
| Control System | PLC/automated control system | Real-time monitoring of current, voltage and electrode position, realizing millisecond-level adjustment to maintain stable furnace conditions and support remote monitoring |
| Auxiliary Systems | Flue gas recovery system, tapping and slagging device, cooling system | Treat smelting flue gas and recover waste heat; complete the discharge of molten iron and slag; ensure the cooling of key components (such as furnace wall and short net) |
3. Key Technical Advantages (vs. AC Submerged Arc Furnace)
- Significant Energy Saving: The power factor is stable above 0.95, and the power consumption per ton of product is reduced by 5%-15%; electrode consumption is reduced by 30%-50%, greatly lowering consumable costs.
- Higher Smelting Efficiency: The arc is stable without fluctuation, the temperature field in the furnace is uniform and the heat is concentrated, the material melting speed is faster, the daily iron output can be increased by more than 30%, and the furnace bottom is less prone to rising.
- Extended Equipment Service Life: The furnace lining is corroded uniformly, without the "hot spot" corrosion common in AC furnaces, and the service life of the furnace lining can be extended to more than 5 years (the industry average is 3-4 years).
- Good Power Grid Compatibility: It has little harmonic interference to the power grid, eliminating the need for large-scale reactive power compensation devices and reducing supporting equipment investment.
- Excellent Environmental Performance: The closed design enables full flue gas collection, facilitating dust removal and waste heat recovery, and significantly reducing the emission of dust and harmful gases.
4. Typical Application Scenarios
- Ferroalloy Smelting: Ferrosilicon, silicomanganese alloy, high-carbon ferrochrome, etc., especially suitable for smelting high-melting-point and difficult-to-reduce ores.
- Industrial Silicon Production: Stable temperature in the furnace leads to more sufficient reactions and higher product purity.
- Calcium Carbide Smelting: Allows deep electrode operation with stable furnace conditions, greatly improving production efficiency.
- Solid/Hazardous Waste Treatment: Some models can be used for harmless smelting and recovery of metal solid waste.
5. Core Technical Parameters (Take a typical 30MVA DC submerged arc furnace as an example)
| Parameter | Indicator Range |
|---|---|
| Rated Capacity | 12-80MVA (mainstream specifications) |
| Working Voltage | 100-300V (DC) |
| Working Current | 20-100kA |
| Furnace Temperature | 1600-2000℃ |
| Electrode Diameter | 600-1500mm |
| Furnace Form | Circular/Rectangular (multi-electrode high-power models) |
