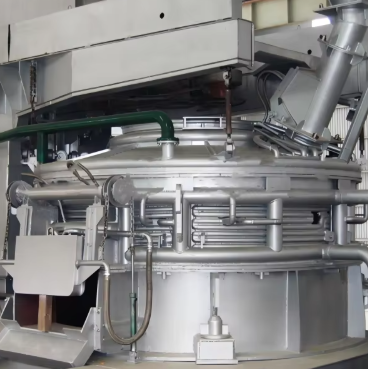

Eco-friendly Electric Arc Steel Smelting Furnace
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | Shaanxi Chengda |
| 証明 | ISO 9001 |
| モデル番号 | 処理能力に基づいて交渉する |
| 最小注文数量 | 1台 |
| 価格 | The price will be negotiated based on the technical requirements and supply scope of Party A |
| パッケージの詳細 | パーティAの特殊要件に従って議論する |
| 受渡し時間 | 2か月 |
| 支払条件 | L/C、T/T、ウェスタンユニオン |
| 供給の能力 | 生産のサプライチェーンを完了し,タイミングで供給し,品質基準を満たす |
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
Skype: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| ハイライト | eco-friendly steel smelting furnace,electric arc steel furnace,steelmaking equipment with warranty |
||
|---|---|---|---|
製品の説明
The electrice arc furnace for steel-making is a special purpose equipment that makes ordinary steel, quality carbon steel alloy steel and non-corrosive steel with electric arc as heat source and scrap steel (iron) as raw material.
Features
1.Type:turning and opening the furnace cover and loading from top. 2.Adopting energy saving type heavy current flow line structure with large section water-cooled cable, water-cooled copper tube, water-cooled compensator as well as three-dimensional equilateral triangle layout.
3.Adopting moment motor type automatic regulator for electrode positioning,capable of both manual and automatic performance. 4.Adopting hydraulic transmission for both furnace body tilting and furance cover lifting;integrated block type hydraulic valves. 5.Adopting programmable Logic controller (PLC)for electic control. 6.Adopting pressure and water temperature monitoring for cooling water system.User shall set up an elevated water tank to prevent power cut accident.
7.Adopting pneumatic mode for both furance door opening /closing and electrode gripping.
Specification
Key attributes
FAQ
Q1: Are you trading company or manufacturer?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally it is 60 days, it is according to quantity requires.
Q3: What is the term of payment?
A: Payment <=1000USD,100%in advance. Payment>=1000USD,30% T/T in advance, balance before shipment.
lf you are interested in this equipment, please don't hesitate to contact us!
lf the machine is not suitable for your plant, please e-mail us the following information:
1. What's the quality standard of billet do you want to casting? ls it common carbon steel or low carbon steel?
2. What's the billet size and length?
3. Do you have melting furnace? lf yes, how many tons of furnace with how many quantity?
4. What's the capacity per hour? According to your information, we will offer high efficiency design and best price for it.
